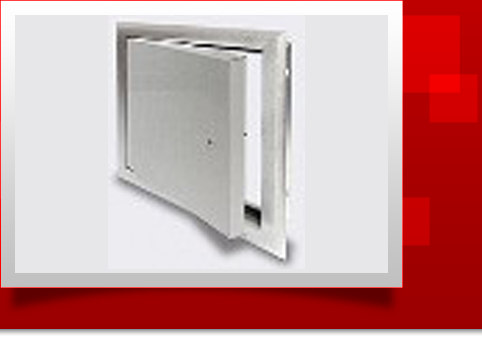

LT-4000 Aluminum Access Door |
The LT-4000 is a lightweight aluminum access
door for walls and ceilings. With a durable design and lightweight
components, access to large openings in walls and ceilings is made easy.
The mitered aluminum frame provides an architecturally pleasing
appearance. The aluminum door panel is lined with 3/4" polystyrene
insulation. The all aluminum construction of the LT-4000 is ideal for
exterior applications, and also those specific interior applications
where corrosion or moisture is a concern. Gasketing between the door and
frame can be provided to insure an airtight fit. |
Product Features
• Mitered aluminum frame provides an architecturally pleasing appearance
• Aluminum door panel is lined with 3/4" polystyrene insulation
• All aluminum construction is ideal for exterior applications,
also specific interior applications where corrosion or moisture is a concern
• Gasketing between the door and frame
LT-4000 Access Door Specifications:
Door / Door Frame: Aluminum: .064 door and .080 frame
Flush to edge of frame, 1-5/16” mitered aluminum extrusion flange
with 1-1/2” deep mounting frame
Hinge: Doors with width 24” or less to have concealed pin hinge.
Doors with width over 24” to have continuous aluminum
piano hinge with exposed knuckle, set to open to 180 degrees.
Insulation: 3/4” Type 3 Expanded Polystyrene (EPS) Foil Lined
Insulation, with a 3.18 R Value.
Gasket: 1/8” x 3/8” closed cell neoprene gasketing
Standard Latch: Screwdriver operated cam latch
Optional Latches/Locks: cylinder lock & key
Finish: Mill finish
Standard Sizes Range From 8" x 8" to 72" x 48"
Special Sizes Available Upon Request |
|
|
|
|
SF-2000 Surface Mount Access Door |
The SF-2000 is an innovative surface mounted
access door for all types of walls and ceilings. The door panel features
rounded safety corners providing an architecturally pleasing
appearance. An exposed continuous piano hinge allows the door panel to
open to 175 degrees. The SF-2000 is the ideal choice for all
applications. The mounting holes in each corner of the frame allow for
easy installation. Since there is no frame to extend into the wall or
ceiling, the SF-2000 is perfect for access to odd size openings. |
Product Features
• An exposed continuous piano hinge allows the door panel
to open to 175 degrees
• There is no frame to extend into the wall or ceiling
• Perfect for access to odd size openings
SF-2000 Access Door Specifications:
Door / Door Frame: Steel: 16 gage, flush to frame
with rounded safety corners and a one piece outer flange
Frame is one piece outer flange
Hinge: Exposed continuous piano hinge
Standard Latch: Stainless steel screwdriver operated cam latch
Optional Latches/Locks: Cylinder lock & key, allen head cam latch,
spanner head cam latch
Finish: 5 stage iron phosphate preparation with White alkyd
baked-on enamel
Standard Sizes Range From 8" x 8" to 24" x 24"
Special Sizes Available Upon Request |
|
|
|
|
ADWT Airtight/Watertight Access Door |
The ADWT is a flush access door that has been
tested for air infiltration and water penetration. The Door and frame
are fully welded and gasketed. This access door is ideal for use in
laboratories, clean rooms, operating rooms, etc. where an
airtight/watertight seal is required. Standard in type 304 stainless
steel with a #4 satin polish. Prime coated Steel is also available. |
Product Features
• ADWT is a flush access door that has been tested for air infiltration
and water penetration
• Door and Frame fully welded
• Continuous Bulb Trim Gasket
• Continuous Stainless Steel Piano Hinge
• Air Infiltration : less than 0.01 cfm/sq foot – ASTM E 283
• Water Penetration : no leakage at 15.05 psf – ASTM E 331
ADWT Access Door Specifications:
Door / Door Frame: Flush to frame with reinforced edges
Stainless Steel or Steel: 16 gauge door; 16 gauge mounting frame
Hinge: Continuous exposed stainless steel piano hinge
Gasket: Continuous Bulb Trim Seal
Standard Latch: Stainless Steel phillips head screws standard
Optional Latches/Locks: stainless steel allen head screws,
stainless steel spanner head screws, torx, cylinder lock & key
Finish: Stainless Steel ; #4 satin polish
Steel : 5 stage iron phosphate with prime coat of White alkyd
baked-on enamel
Standard Sizes Range From 12" x 12" to 30" x 48"
Special Sizes Available Upon Request |
|
|
|
|
AS-9000 Fully Gasketed Access Door |
The AS-9000 is a fully gasketed access
door, designed for use in walls and ceilings. The formed door panel,
with a concealed hinge, and closed cell neoprene gasket, provides for a
tight fit. Most popular in stainless steel, with a #4 satin polish, this
door is also available in prime coated steel. This door is commonly
used in clean rooms, laboratories, operating rooms, etc.
Please note that although being fully gasketed, the AS-9000 has not been tested for air penetration.
|
Product Features
• Fully gasketed access door
• Formed door panel with reinforced edges and a concealed hinge,
along with closed cell gasket between the door and frame
AS-9000 Access Door Specifications:
Door / Door Frame: Stainless Steel or Steel: 18 gage door,
18 gage mounting frame, flange to be 1” wide
Hinge: Concealed
Gasket: Pemko S88 1/8” x 3/8” opened cell gasket
Standard Latch: Stainless steel screwdriver operated cam latch
Optional Latches/Locks: Cylinder lock & key, allen head cam latch,
spanner head cam latch
Finish: Stainless steel: #4 satin polish.Steel: 5 stage iron phosphate
with prime coat of White alkyd baked-on enamel
Standard Sizes Range From 12" x 12" to 24" x 36"
Special Sizes Available Upon Request |
|
|
|
|
WD-8000 Walk Through Access Door |
The WD-8000 Walk Through Access Door is
designed to provide convenient walk through access to duct work
interiors and air handling units. The heavy duty construction, along
with a continuous hinge and compression handles provide for low leakage
in low to medium pressure systems and plenums.
|
Product Features
• Heavy duty construction, along with a continuous hinge
and compression handles
Optional Features: Removable Door Panel / Vision Panel / High Pressure Units
WD-8000 Access Door Specifications:
Door / Door Frame: 22 gauge galvanized steel, double panel
frame is 1 15/16” wide x 1 1/2” deep extruded aluminum with mitred corners
Hinge: Continuous steel piano hinge-opens 180o
Insulation: Door panel filled with 1” thick fibreglass insulation - 4 R value
Gasket: 1/8” thick x 1/2” wide closed cell neoprene gasketing between door
and frame
Standard Latch: Dual acting compression handles-operable from both sides.
Units 48” high and under to have 2 handles.
Units over 48” high to have 3 handles
Finish: Mill finish
Standard Sizes Range From 24" x 36" to 30" x 72"
Special Sizes Available Upon Request |
|
|
|
