DW-5015 Recessed Access Door |

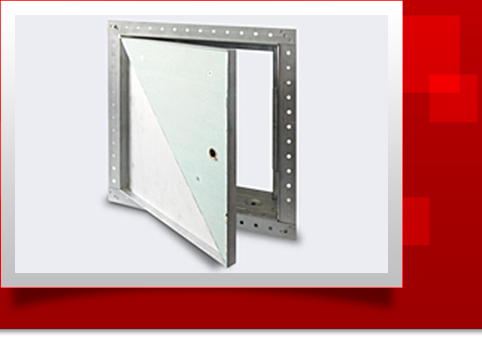

The DW-5015 recessed access door
is designed for flush installation in drywall surfaces when it is
required to conceal the door panel, which is recessed 5/8" to receive
drywall. The flange of the door is a textured galvanized steel taping
bead with pre-punched holes. Drywall compound is applied over the
beading at the same time the drywall joints are finished. |
DW-5015 Access Door Specifications:
Material: Steel or Stainless Steel: 22 gage door, 22 gage mounting frame
Door: Recessed 5/8"
Door Frame: Galvanized steel drywall taping bead on all sides
Hinge: Concealed
Standard Latch: Slotted screwdriver cam latch
Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head
cam latch
Finish: Satin coat steel
Standard Sizes Available From 12" x 12" to 24" x 36"
Special Sizes Upon Request |
|
|
|
|
DW-5058 Recessed Drywall Panel Door |
The DW-5058 is designed to provide access in walls and ceilings,
while maintaining an invisible, architecturally pleasing appearance.
This door is standard with a touch latch feature. Designed to
accommodate 5/8" drywall, the frame can be reversed to accommodate 1/2"
drywall.
|
DW-5058 Access Door Specifications:
Door: .080 aluminum extrusion with 5/8” drywall inserted into door panel
Door Frame: .080 aluminum extrusion recessed to provide similar edge to drywall bead to allow
for finishing of wall or ceiling surface.
Hinge: Spring loaded hinge pin allows door panel to open to 90 degrees, and also allows for
door panel to be removed from frame. Safety chain installed on door & frame for safety.
Standard Latch: Concealed Touch Latches
Optional Latches/Locks: Screwdriver operated cam latch, allen head cam latch, spanner head
cam latch, cylinder lock & key.
Finish: Mill Finish. Drywall is ready to be finished to match surrounding wall or ceiling surface.
Standard Sizes Available From 12" x 12" to 24" x 36"
Special Sizes Available Upon Request |
|
|
|
|
|
The BAUCO PLUS access door is designed to provide access in walls and
ceilings, while maintaining an invisible, architecturally pleasing
appearance. The door panel is supplied with one layer of 5/8" drywall
(or 1/2"). The concealed hinge and removable door panel, along with the
easy installation and finishing process, make this access door the best
drywall access door in the industry. |
BP-58 Bauco Plus Access Door Specifications:
Door: Aluminum extrusion with 5/8” drywall inserted into door panel
(1/2” also available)
Door Frame: Recessed aluminum extrusion provides similar edge to drywall
bead against which wall or ceiling surface can be finished
Hinge: Unique concealed non corroding two point pin hinge
Standard Latch: Screwdriver operated cam latch
Optional Latches/Locks: Tamper resistant torx head cam latch,
cylinder lock and key, concealed touch latch
Finish: Mill Finish. Drywall is ready to be finished to match surrounding
wall or ceiling surface
Standard Sizes Available From 12" x 12" to 24" x 36"
Special Sizes Available Upon Request |
|
|
|
|
AT-5020 Recessed Access Door
|
The AT-5020 recessed access door is designed for flush installation
in walls or ceilings when it Is required to conceal the door panel,
which is recessed 1". |
AT-5020 Access Door Specifications:
Material: Steel : 16 gage door, 14 gage mounting frame
Door: Recessed 1"
Door Frame: 14 gage mounting frame
Hinge: Concealed, pivoting rod type, for wall applications over 24”x24”
we supply a concealed pins hinge
Standard Latch: Flush to surface, screwdriver operated cam latch
Optional Latches/Locks: Cylinder lock and key, screwdriver latch
Finish: Steel: 5-stage iron phosphate preparation with prime coat
of White alkyd baking-on enamel
Standard Sizes Available From 12" x 12" to 24" x 36"
Special Sizes Available Upon Request |
|
|
|
|
AP-5010 Recessed Access Door |
The AP-5010 recessed access door is designed for use in acoustical
plaster walls and ceilings. The door is recessed 5/8" and is lined with
self-furring lath. An expansion casing bead with 3" wide galvanized
lath, included as part of the frame, provides a clean, tight finish
between the frame and plaster and also adds reinforcement. |
AP-5010 Access Door Specifications:
Material: Steel or Stainless Steel: 16 gage door, 14 gage mounting frame
Door: Recessed 5/8" and lined with self-furring galvanized lath
Door Frame: Expansion casing bead with 3" wide galvanized lath,
recessed 3/4" to receive plaster
Hinge: Concealed, pivoting rod type. (For wall applications, a continuous
exposed piano hinge is suggested.)
Standard Latch: Flush to surface, screwdriver operated cam latch
Optional Latches/Locks: Cylinder lock and key, allen head cam latch,
spanner head cam latch
Finish: Steel: 5-stage iron phosphate preparation with prime coat of White
alkyd baked-on enamel
Standard Sizes Available From 12" x 12" to 24" x 36"
Special Sizes Available Upon Request |
|
|
|
