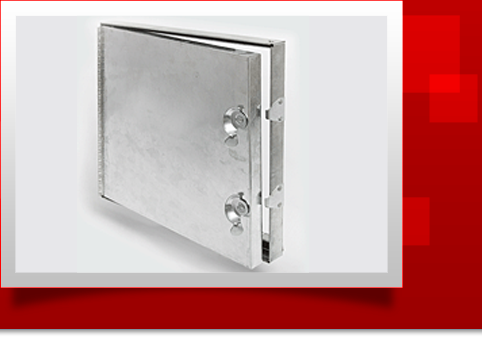

HD-5070 "Hinged" Duct Access Doors |
Duct Access Doors are designed to provide
convenient, economical access to duct components. The insulated door
panel, along with the gasketing between the door and frame assures a
tight seal without obstruction in the air system. Duct access
doors are available in either hinged (HD-5070) or double cam (CD-5080)
construction. |
Product Features
• Insulated door panel, along with the gasketing between the door and frame
• 5/8” notched knock over tabs on the inside of the frame
provide for easy installation
• These doors are designed for use in LOW to medium pressure up to 3” static W.G.
Options:
• ALUMINUM
• STAINLESS STEEL
• CYLINDER LOCK & KEY
• HASP + STAPLE
• L HANDLE
HD-5070 Duct Access Door Specifications:
Door: 24 gauge galvanized steel,double panel
Frame: 24 gauge galvanized steel with 5/8" notched knock over tabs
Hinge: Continuous aluminum piano hinge
Insulation: Door panel filled with 2" fibreglass insulation (7.7 R factor),
compressed into 1".
Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between
door and frame and also between frame and duct
Standard Sizes Range From 6" x 6" to 24" x 24"
Special Sizes Available Upon Request |
|
|
|
|
CD-5080 Double Cam "No Hinge" Duct Access Doors |
Duct Access Doors are designed to provide
convenient, economical access to duct components. The insulated door
panel, along with the gasketing between the door and frame assures a
tight seal without obstruction in the air system. Duct access
doors are available in either hinged (HD-5070) or double cam (CD-5080)
construction. |
Product Features
• These doors are designed for use in LOW to medium pressure
up to 3” static W.G.
• 5/8” notched knock over tabs on the inside of the frame
provide for easy installation
Options:
• ALUMINUM
• STAINLESS STEEL
• VISION PANELS
• CYLINDER LOCK & KEY
• HASP + STAPLE
• L HANDLE
CD-5080 Duct Access Door Specifications:
Door: 24 gauge galvanized steel,double panel
Frame: 24 gauge galvanized steel with 5/8" notched knock over tabs
Insulation: Door panel filled with 2" fibreglass insulation (7.7 R factor),
compressed into 1".
Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing
between door and frame
Latch: Self tightening, hand operated cam latch
Standard Sizes Range From 6" x 6" to 24" x 24"
Special Sizes Available Upon Request |
|
|
|
|
RD-5090 Duct Access Doors For Round Ducts |
The RD-5090 is designed to provide
convenient, economical access to round ducts. The pull and catch lock
system, along with the gasketing on the door assures a tight seal
without obstruction in the air system. The steel continuous piano hinge
provides for easy installation. |
Product Features
• Pull and catch lock system
• Gasketing on the door assures a tight seal without obstruction
in the air system
RD-5090 Duct Access Door Specifications:
Door / Door Frame: 16 gauge galvanized steel
Gasketing: 1/8” thick by 1” wide closed cell neoprene
Standard Latch: Plated steel pull and catch
Finish: Mill / Aluminum
Standard Sizes Range From 5" Duct Opening to 24" Duct Opening
Special Sizes Available Upon Request |
|
|
|
|
GDD Grease Duct Access Door |
The GDD is a UL and ULC listed access door
for installation into grease ducts. The 16 gage steel construction along
with the high temperature resistant gasket and sealant allows this door
to be grease tight and airtight. This door meets or exceeds
requirements of all mechanical codes.
|
Product Features
• Bolt in unit easily installed into existing ductwork
• Duct cutout template included
• No bolts penetrate to the interior of the duct
• Two handles for easy removal and installation
Standard Sizes Range From 7" x 7" to 20" x 20"
Special Sizes Available Upon Request |
|
|
|
|
CD-5080-HP Duct Access Doors For High Pressure Ducts
|
Duct Access Doors for High Pressure Ducts are
designed to provide convenient, economical access to high pressure
ducts. These doors are for use in high pressure ducts up to 8" static
pressure. Pressure rated to 8" W.G. with leakage no greater than 2 CFM
per sq. ft. or less. The 5/8" notched knock over tabs on the inside of
the frame provide for easy installation.
When required, doors can
be made out of aluminum or stainless steel. Other options include: duct
doors for fiberglass duct board, duct doors with vision panels, walk in
doors and access doors for round ducts. |
Product Features
• These doors are for use in high pressure ducts up to 8” static pressure.
Pressure rated to 8” W.G. with leakage no greater than 2 CFM per sq. ft. or less.
• 5/8” notched knock over tabs on the inside of the frame
provide for easy installation
Options:
• ALUMINUM
• STAINLESS STEEL
CD-5080-HP Duct Access Door Specifications:
Door: 24 gauge galvanized steel,double panel with high temperature glue
Frame: 24 gauge galvanized steel with 5/8" notched knock over tabs
Insulation: Door panel filled with 2" fibreglass insulation (7.7 R factor),
compressed into 1".
Gasketing: 1/4" thick by 1/2" wide closed cell neoprene gasketing
between door and frame. 1/8" thick by 1/2" wide closed cell
neoprene gasketing between frame and duct
Latch: Self tightening, hand operated cam latch
Standard Sizes Range From 6" x 6" to 24" x 24"
Call For Pricing/Special Sizes Available Upon Request |
|
|
|
|
HD-5070-F Duct Access Doors For Fiberglass Ducts |
Duct Access Doors for Fiberglass Ducts are
designed to provide convenient, economical access to fiberglass ducts.
These doors are for use in low to medium pressure fiberglass ducts. Duct access doors for Fiberglass Ducts are available in either
hinged (HD-5070-F). |
Product Features
• These doors are for use in low to medium pressure fibreglass ducts
• Hinged door panel
Options:
• ALUMINUM • STAINLESS STEEL
HD-5070-F "Hinged" Fibreglass Duct Doors Specifications:
Door: 24 gauge galvanized steel
Frame: 24 gauge galvanized steel
Hinge: Continuous aluminum piano hinge
Insulation: Insulation 1” Micro-AIRC M/F TYPE-475 R value 7.7
Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between
door and frame and also between frame and duct
Latch: Self tightening, hand operated cam latch
Standard Sizes Range From 6" x 6" to 24" x 24"
Call For Pricing/Special Sizes Available Upon Request |
|
|
|
|
CD-5080-F "No Hinge" Duct Access Doors For Fiberglass Ducts |
Duct Access Doors for Fiberglass Ducts are
designed to provide convenient, economical access to fiberglass ducts.
These doors are for use in low to medium pressure fiberglass ducts. Duct access doors for Fiberglass Ducts are available in double
cam (CD-5080-F) construction. |
Product Features
• These doors are for use in low to medium pressure fibreglass ducts
• Double cam - no hinge, removable door panel
Options:
• ALUMINUM • STAINLESS STEEL
CD-5080-F Duct Access Door Specifications:
Door: 24 gauge galvanized steel
Frame: 24 gauge galvanized steel
Insulation: 1" Micro-Airc M/F type 475
Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing
between door and frame. 1/16" thick by 11/2" adhesive bonded
gasket between frame to duct
Latch: Self tightening, hand operated cam latch
Standard Sizes Range From 6" x 6" to 24" x 24"
Call For Pricing/Special Sizes Available Upon Request |
|
|
|
|
WD-8000 Walk Through Access Door |
The WD-8000 Walk Through Access Door is
designed to provide convenient walk through access to duct work
interiors and air handling units. The heavy duty construction, along
with a continuous hinge and compression handles provide for low leakage
in low to medium pressure systems and plenums.
|
Product Features
• Heavy duty construction, along with a continuous hinge
and compression handles
Optional Features: Removable Door Panel / Vision Panel / High Pressure Units
WD-8000 Access Door Specifications:
Door / Door Frame: 22 gauge galvanized steel, double panel
frame is 1 15/16” wide x 1 1/2” deep extruded aluminum with mitred corners
Hinge: Continuous steel piano hinge-opens 180o
Insulation: Door panel filled with 1” thick fibreglass insulation - 4 R value
Gasket: 1/8” thick x 1/2” wide closed cell neoprene gasketing between door
and frame
Standard Latch: Dual acting compression handles-operable from both sides.
Units 48” high and under to have 2 handles.
Units over 48” high to have 3 handles
Finish: Mill finish
Standard Sizes Range From 24" x 36" to 30" x 72"
Special Sizes Available Upon Request |
|
|
|
