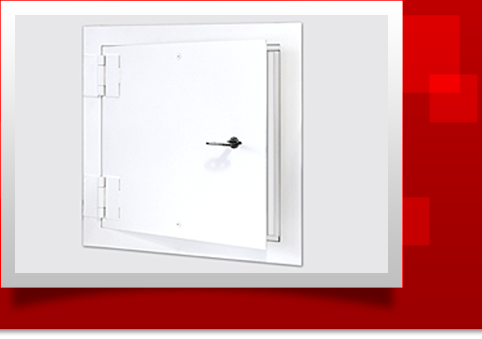

SD-6000 Security Door For Heavy Security |
The
Acudor SD-6000 is a heavy duty access door designed for use in high
security areas. The angle frame construction and 10 gage plate door
panel makes this access door ideal for prisons, correctional facilities,
housing projects etc.
Our standard security butt hinges are
surface welded to the door and frame, allowing the door panel to operate
freely. A detention type deadbolt lock with paracentric key is
standard. |
|
 |
|
|
Product Features
• 10 Gauge Door
• Security butt hinges are surface welded to the door and frame
• A detention type deadbolt lock with paracentric key is standard
SD-6000 Access Door Specifications:
Door / Door Frame: Door 10 gauge (.134) plate & frame is 2x2x3/16 angle,
flush to edge of frame. Mounting frame to have anchor straps
Hinge: Heavy duty butt hinges, welded to door and frame
Standard Latch: Detention type deadbolt lock with paracentric key
Optional Latches/Locks: Tamperproof security cam latches, cylinder
lock and key. When master keying is required, doors can be prepared
for rim or mortise cylinder locks
Finish: 5 stage iron phosphate preparation with prime coat of
White alkyd baked-on enamel. Stainless Steel: #4 satin polish
Standard Sizes Range From 12" x 12" to 36" x 36"
Special Sizes Available Upon Request |
|
|
|
|
MS-7000 Security Door For Medium Security |
The MS-7000 is a medium duty access door. The
12 gage door and frame construction and tamperproof security cam
latches make this access door ideal for use in medium security jails,
prisons, psychiatric institutions, etc.
The door panel features
rounded safety corners which provides an architecturally pleasing
appearance. The one piece trim flange and continuous concealed hinge
keep the door panel from racking, sagging, or distorting. |
Product Features
• Door panel features rounded safety corners
• A one piece trim flange and continuous concealed hinge
• 12 Gauge door and frame
MS-7000 Access Door Specifications:
Door / Door Frame: Steel or Stainless Steel,12 gauge door,
12 gauge mounting frame, Flush to frame with rounded safety corners and
reinforced panel. One piece outer flange welded to mounting frame
Hinge: Continuous, concealed
Standard Latch: Tamper resistant allen head cam latch with security pin
Optional Latches/Locks: Spanner head cam latch, cylinder lock & key.
When master keying is required, doors can be prepared for rim or
mortise cylinder locks
Finish: 5 stage iron phosphate preparation with prime coat of White alkyd
baked-on enamel. Stainless Steel: Type 304 — #4 satin polish.
Standard Sizes Range From 12" x 12" to 36" x 36"
Special Sizes Available Upon Request |
|
|
|
