Table of Contents
- Superior Load-Bearing Capacity for Commercial Spaces
- H20 Load Rated Floor Doors Protect Infrastructure
- Extended Durability and Weather Resistance
- Commercial Floor Hatch Installation Guide
- Floor Hatch Load Capacity Requirements Explained
- Enhanced Safety and Fall Prevention Features
- Cost Efficiency and Long-Term Value
- Frequently Asked Questions
Last Updated: October 3, 2026
Superior Load-Bearing Capacity for Commercial Spaces
Heavy duty floor hatches are engineered to handle demanding commercial environments where foot traffic, equipment movement, and occasional vehicle loads are everyday realities. The defining characteristic of these access solutions is their load-bearing capacity, which determines whether an installation will perform reliably for decades or fail prematurely under stress.
Heavy duty floor hatches support weights that would damage lighter alternatives. Models like the Halliday Products H2R Aluminum Angle Frame H20 Loading Floor Door are rated for H-20 loading, meeting AASHTO H-20-44 wheel load standards that allow occasional vehicle passage. For facilities managing underground vaults, submersible pump access, or utility tunnels, load capacity isn't negotiable, a floor hatch rated for only pedestrian traffic will fail catastrophically if subjected to vehicle loads.
The structural integrity of the frame itself matters as much as the load rating. Channel frames, with their trough-like structure, offer superior load distribution and are preferred for high-traffic areas. Angle frames are economical for lighter-duty applications where pedestrian access is the primary concern.
H20 Load Rated Floor Doors Protect Infrastructure
H-20 load rating represents a critical threshold in commercial construction. These hatches are engineered to withstand occasional wheel loads from vehicles without structural failure, making them the standard choice for vaults located near roadways, parking areas, or any location where vehicle passage overhead is possible.
The H-20 rating comes from AASHTO (American Association of State Highway and Transportation Officials) standards, which define a specific wheel load and axle configuration. A floor hatch meeting this standard can handle the weight of a fully loaded delivery truck without buckling, cracking, or compromising the seal. Infrastructure failures are expensive, a collapsed hatch creates safety hazards, disrupts operations, and exposes your facility to liability.
Victory Construction Products carries several H-20 rated options. The Acudor FA-H20 Aluminum Angle Frame Floor Door is designed for off-street locations that may occasionally receive H-20 wheel loads. The Acudor FC-H20 Aluminum Trough/Channel Frame Floor Door provides the same load rating with added watertightness for moisture-prone applications.
Once installed, H-20 rated hatches perform reliably without requiring frequent inspection or replacement. Facility managers can focus on operations rather than worrying about access door failure. For utilities, water treatment plants, and commercial properties, this reliability translates directly to reduced maintenance costs and fewer emergency repairs.
Extended Durability and Weather Resistance
Commercial floor hatches endure constant exposure to moisture, temperature fluctuations, and chemical environments. Heavy duty hatches are built to survive these conditions with minimal maintenance.
Material selection is the foundation of durability. Aluminum hatches resist corrosion naturally and require less maintenance than steel alternatives. Steel models compensate with protective coatings: zinc-plated hardware, epoxy finishes, and chromate sealing extend service life significantly. The Bilco Type J Floor Hatch features zinc-plated and chromate-sealed hardware, protecting fasteners and hinges from rust even in wet environments.
For facilities prone to flooding or high moisture, floodtight designs offer additional protection. The Halliday Products F1R Floodtight Angle Frame Floor Door is specifically engineered for areas where water intrusion is a risk, using curb-style construction and specialized seals to prevent water from entering the vault during heavy rain or flooding events.
Hinge design also impacts durability. Heavy forged brass hinges resist corrosion and maintain smooth operation for decades. Composite spring tubes and lift-assist mechanisms function reliably without frequent lubrication or adjustment. UV-resistant materials and coatings maintain structural integrity through temperature swings, freeze-thaw cycles, and prolonged sun exposure.
| Material Type | Corrosion Resistance | Best For | Maintenance Level |
|---|---|---|---|
| Aluminum | Excellent, natural | Wet environments, coastal areas | Low |
| Steel with epoxy coating | Very good | General commercial use | Low to moderate |
| Stainless steel hardware | Excellent | Aggressive chemical environments | Very low |

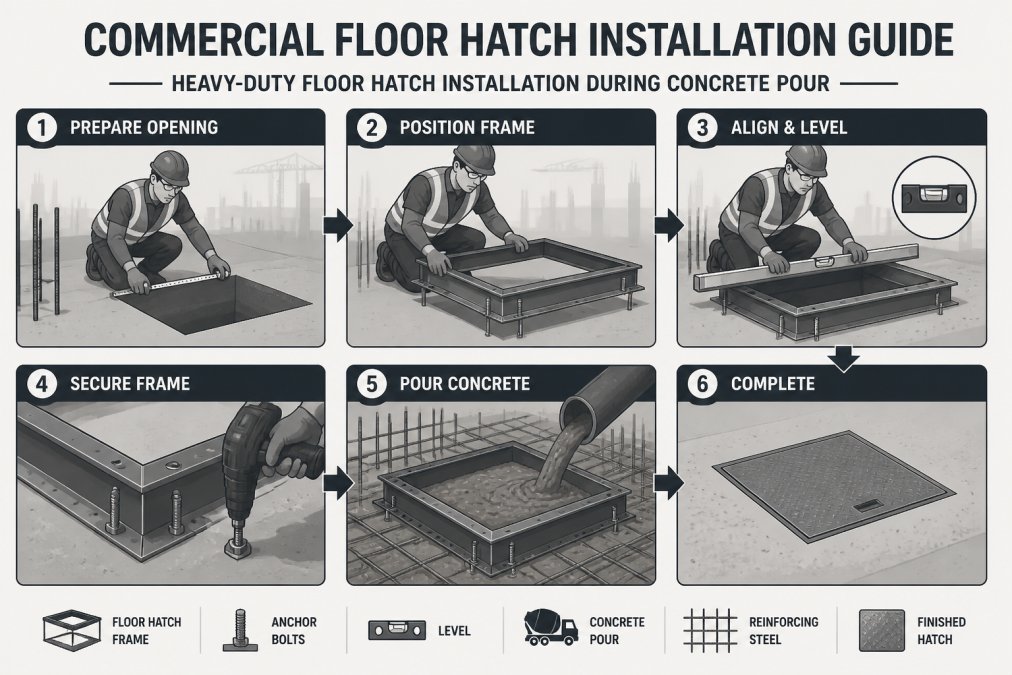

Commercial Floor Hatch Installation Guide
Proper installation determines whether a floor hatch performs as engineered or fails prematurely. Heavy duty hatches are typically cast into concrete or bolted to existing structures.
For new construction, angle-frame and channel-frame hatches are designed to be cast directly into concrete. The frame anchors into the pour, creating a monolithic installation that distributes loads evenly. The integral anchor flange on models like the Acudor FA-H20 is designed specifically for this casting method.
For existing structures, bolting is the standard approach. Hatches are positioned over the opening and fastened with corrosion-resistant bolts through the frame into the surrounding concrete or structure. This method is reversible and ideal for retrofits and replacements.
Drainage considerations affect installation planning. Channel-frame models include a threaded drain coupling for connection to dry or wet wells, preventing water accumulation around the hatch. The Bilco Type J-AL Floor Hatch features this drainage design, making it suitable for utility applications where moisture management is critical.
Seal integrity depends on proper installation. The frame must be level and fully supported before the hatch is placed. Installation hardware should be corrosion-resistant to prevent rust and binding over time.
Floor Hatch Load Capacity Requirements Explained
Understanding load capacity requirements prevents costly mistakes and safety failures. Load capacity is expressed in pounds per square foot (psf) or as a load rating like H-20, and the correct specification depends on actual site conditions.
Pedestrian-only areas require minimum load capacity. A basement utility room accessed by maintenance staff a few times per year needs only pedestrian rating, typically 300 lb. psf. The Halliday Products S1R Aluminum Angle Frame Floor Door at 300 lb. psf is economical for these applications.
Halliday Products S1R Aluminum Angle Frame Floor Door/Hatch – Single Leaf →
Mixed-use locations demand higher ratings. A vault located near a parking area or loading dock might experience occasional vehicle passage. In these cases, H-20 rating is appropriate. The difference in cost between 300 lb. psf and H-20 is modest, but the structural margin is substantial.
Specialized applications require custom specifications. Wastewater treatment plants, industrial facilities, and utility vaults often have unique load requirements. Victory Construction Products stocks options across the spectrum, allowing you to specify exactly what your facility needs.
Load capacity also relates to foot traffic patterns. A high-traffic area like a commercial kitchen or warehouse floor experiences concentrated loads from people and equipment. Channel-frame designs distribute concentrated loads better than angle frames, making them the preferred choice for high-traffic interior applications.
When in doubt, consult the site conditions and facility usage patterns before finalizing specifications. The cost of oversizing is minimal compared to undersizing.
Enhanced Safety and Fall Prevention Features
Fall prevention and safe operation are non-negotiable in commercial settings. Heavy duty hatches incorporate multiple safety features that prevent tripping hazards, reduce injury risk, and ensure controlled operation.
Flush-mounted hatches like the Acudor FT-8050 Aluminum Floor Door Recessed 1" for Ceramic Tile or Concrete eliminate tripping hazards by sitting level with the surrounding floor. When closed, the hatch blends seamlessly with ceramic tile or concrete, reducing the risk of someone catching a foot on a raised edge.
Lift-assist mechanisms make operation safer and easier. Spring-assist arms and automatic hold-open features prevent the hatch from slamming shut unexpectedly, reducing pinch injuries and hand crushing risks. The Bilco Type K Floor Hatch features the T-CAM lifting system, which provides smooth, controlled operation without requiring excessive force.
Positive latching mechanisms ensure the hatch remains securely closed during operation. Quality heavy duty hatches use mechanical latches or locking systems that keep the door firmly in place until deliberately opened. Drop handles positioned at comfortable heights reduce strain and allow users to maintain balance while opening the hatch.
For facilities with security concerns, locking mechanisms prevent unauthorized access to utility areas, vaults, or restricted zones. Regular inspection of hinges, latches, and seals ensures that safety systems remain functional. A hatch with a worn latch or failing spring assist is a safety liability.
Cost Efficiency and Long-Term Value
Initial purchase price is only one factor in the total cost of ownership for floor hatches. A cheaper hatch that fails in five years costs far more than a quality unit lasting 20+ years. Heavy duty hatches deliver superior value through durability, reduced maintenance, and reliable performance.
The price range for commercial floor hatches varies significantly based on load rating, material, and features. The Halliday Products F1R Floodtight Angle Frame Floor Door starts at $1,050 for basic pedestrian-rated floodtight access. The Halliday Products H2R Aluminum Angle Frame H20 Loading Floor Door (Double Leaf) is $7,580 for heavy-duty, high-capacity access. The difference reflects the engineering, materials, and load capacity required.
Maintenance costs accumulate over time. Quality heavy duty hatches minimize these costs through superior materials and engineering. Stainless steel hardware resists corrosion (The corrosion behavior of selected stainless steels in soil environments:). Epoxy coatings protect steel. Channel-frame designs reduce stress on hinges and fasteners. When a hatch fails, operations stop and emergency repairs are expensive and disruptive.
Facility managers responsible for multiple properties appreciate Victory Construction Products's approach. With over 27 years of industry experience and same-day shipping on most in-stock orders, we simplify procurement for time-sensitive projects. Our lowest-price guarantee ensures you're not overpaying, and our in-stock inventory from 15 trusted brands means you get the exact specifications you need without delays.
| Cost Factor | Budget Hatch | Quality Heavy Duty Hatch |
|---|---|---|
| Initial cost | Lower | Higher |
| Maintenance burden | High | Low |
| Seal replacement frequency | Every 3-5 years | Every 10+ years |
| Emergency repair risk | High | Low |
| Expected service life | 5-10 years | 20+ years |
| Total 20-year cost | Higher | Lower |
Heavy duty floor hatches are essential infrastructure for any commercial facility with underground vaults, utility access, or areas requiring secure, reliable entry points. Superior load-bearing capacity, H-20 protection, extended durability, safe installation, and long-term cost efficiency make the case for specifying quality access solutions. When you're managing time-sensitive projects across multiple properties, Victory Construction Products delivers the reliability you need. Our team has spent 27 years building relationships with contractors, facility managers, and procurement professionals who depend on us for in-stock solutions, rapid same-day shipping, and a lowest-price guarantee. Explore our selection of floor hatches and access doors today, and add reliable, durable infrastructure to your next project.
Frequently Asked Questions
What does H20 loading mean for heavy duty floor hatches?
H-20 loading refers to AASHTO H-20-44 wheel load standards, meaning the hatch can support occasional vehicle loads in off-street locations. This rating is critical for hatches near roadways or in facilities with vehicle traffic. Models like the Halliday H2R and Acudor FA-H20 meet this specification, allowing them to handle both pedestrian foot traffic and occasional heavy vehicle weight without structural failure.
How do you determine the correct floor hatch load capacity for your project?
Load capacity depends on your site's traffic type and frequency. Standard pedestrian areas (offices, warehouses) typically need 300 PSF rating. Off-street locations near roads require H-20 loading. Flooding-prone areas demand floodtight models rated for water pressure, like the Halliday F1R at 625 PSF. Review your building codes and facility blueprints, then match the hatch rating to your actual foot and vehicle traffic patterns.
What materials are best for heavy-duty floor hatches in high-traffic areas?
Aluminum and steel are the industry standards. Aluminum hatches (like Bilco Type J-AL and Acudor models) resist corrosion and weigh less, making installation easier. Steel options (Bilco Type J) offer maximum durability for the heaviest loads. For coastal or wet environments, choose stainless steel hardware or floodtight designs. Channel-frame construction provides superior drainage control compared to angle-frame designs.
Are heavy-duty floor hatches required to be watertight?
Not always. Watertightness depends on location and building codes. Hatches in dry vaults or interior spaces don't require sealing. However, facilities in flood-prone areas, potable water storage access points, or underground vaults with moisture concerns need floodtight models. The Halliday F1H withstands a 25-foot water column, while the Acudor FC-H20 includes drainage coupling for wet environments. Always verify local building codes for your specific application.
