ASVB Surface Mounted Valve Boxes |
The ASVB is a surface mounted valve box
designed to provide easy, convenient access to all types of valves and
controls that extend outside of the finished wall, but need to be
protected by a fully enclosed box. The depth of the valve box can be
modified to meet all valve and control requirements. When required,
vision panels, louvers and engraved plates can be supplied along with
special holes for pipes or conduits. |
Product Features
• The depth of the valve box can be modified to meet all the valve and
control requirements.
• When required, vision panels, louvers, engraved plates can be supplied,
along with special holes for pipes or conduits.
ASVB Valve Box Specifications:
Box Material: Stainless Steel or Steel: 16 gauge door & box
Box Door: Overlaps box, providing for a tight secure fit
Box: Fully enclosed, completely attached to frame. When required,
box can be made with open back.
Box Hinge: Continuous, exposed piano hinge
Box Latch: Cylinder lock & key. Also available: screwdriver operated cam
latch, allen head cam latch, spanner head cam latch, flush
paddle handle, thumb turn latch
Box Finish: Stainless Steel: #4 satin polish. Steel: 5 stage iron phosphate
preparation with prime coat of White alkyd baked-on enamel
Standard Sizes Range From 8" x 8" x 4" Deep to 12" x 12" x 8" Deep
Special Sizes Available Upon Request |
|
|
|
|

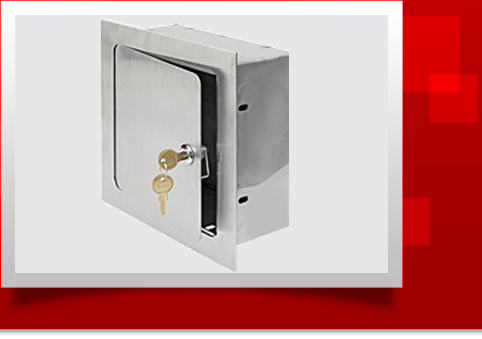

ARVB Recessed Valve Boxes |
Recessed Valve Boxes, ARVB, are designed to
provide easy, convenient access to all types of valves and controls that
need to be concealed in the wall, but protected by a fully enclosed
box. The depth of the valve box can be modified to meet all the valve
and control requirements. When required, vision panels, louvers,
engraved plates can be supplied, along with special holes for pipes or
conduits. |
Product Features
• The depth of the valve box can be modified to meet all the valve and
control requirements
• When required, vision panels, louvers, engraved plates can be supplied,
along with special holes for pipes or conduits
ARVB Valve Box Specifications:
Box Material: Stainless Steel or Steel: 16 gauge door, frame, box
Box Door: Flush to frame — rounded safety corners
Box Frame: One piece outer flange welded to box
Box: Fully enclosed, completely attached to frame. When required,
box can be made with open back.
Box Hinge: Continuous, concealed
Box Latch: Cylinder lock & key, Also available: screwdriver operated cam latch,
spanner head cam latch, flush paddle handle, thumb turn latch.
Box Finish: Stainless Steel: #4 satin polish. Steel: 5 stage iron phosphate
preparation with prime coat of White alkyd baked-on enamel
Standard Sizes Range From 8" x 8" x 4" Deep to 12" x 12" x 8" Deep
Special Sizes Available Upon Request |
|
|
|
|
AFVP Flush Valve Access Panel
|
The AFVP provides quick and easy access to
flush valves that are concealed in the wall. Constructed out of type 304
stainless steel with a #4 satin polish, the door panel is removable
from the frame via tamperproof stainless steel screws. A 1-1/2" dia.
hole in the center of the panel is provided for the valve handle. |
Product Features
• Door panel is removable from the frame via tamperproof stainless steel screws
• A 1-1/2" dia. hole in the center of the panel is provided for the valve handle
AFVP Door Panel Specifications:
Door: Overlaps frame, completely removable via
tamperproof stainless steel screws, Door panel to have 1-1/2" dia. hole in center
Door Frame: 18 gauge stainless steel, 1-1/4" deep
Standard Latch: Tamperproof stainless steel screws
Finish: #4 satin polish
Standard Sizes Are 12" x 12" & 15" x 15"
Call For Pricing/Special Sizes Available Upon Request |
|
|
|
